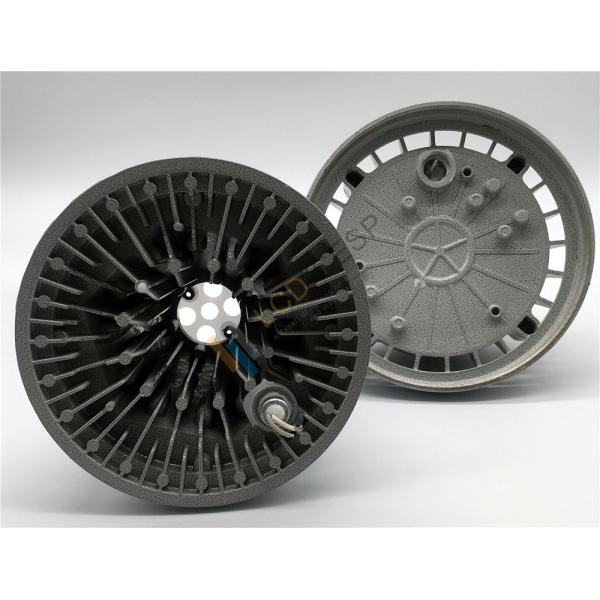

CREE Chip 220V 60Hz 30W Explosion Proof Led Flood Light
Explosion proof led flood light 30W 220V 60Hz emergency time 60 minute IP66 IK10
Lighting solutions for Ex Hazardous Area
With decades of experience as a global supplier to the marine and oil & gas industry, our main focus will always be quality, safety and service. For hazardous areas, it is very important that the product is designed for use in the designated area, and that certifications and specifications are according to the requirements. LCD EX lighting solutions have been developed through years of experience. Our experienced staff can give you advice on explosion proof lighting for the offshore industry.
Item List
| Rated power(W) | 20w | 30w | 40w | 50w |
| Rated voltage(V) | AC220v /230v /240v |
| Protection grade | IP66 |
| Corrosion-proof grade | WF1, WF2 |
| Charging time(h) | 24 |
| Inlet thread | G3/4 |
| Emergency time (min) | 60/90 |
| Emergency light start time | 0.3S |
| Cable outer dia.(mm) | Φ10~Φ14 |
| Ex-mark | Ex d II C T6 Gb
Ex tD A21 IP66 T80 |
*: Required when ordering.
Ex areas can be known by different names such as “Hazardous Locations”, “Hazardous Areas” “Explosive Atmospheres”, and the like and relate to areas where flammable liquids, vapors, gases or combustible dusts are likely to occur in quantities sufficient to cause a fire or explosion.
Products designed and developed to be installed and used in hazardous areas must be certified in accordance with project and regional requirements. The standards for hazardous areas are not the same for all regions.
IECEx - International Electromechanical Commission System for certification to standards relating to equipment for use in explosive atmospheres.
Atex – Regional European ATEX directives for equipment (94/9/EC) and worker protection (1999/92/EC) in potentially explosive atmospheres become mandatory for European installation from 1st July 2003.
LCD-HLBD55-C/D Series Explosion-proof LED Lamp (IIC, tD)
Application
1. Zone 1 and Zone 2, Group IIA, IIB, IIC explosive gas environment, and/or Zone 21, Zone 22 combustible dust environment;
2. Temperature class: T1~T6;
3. Indoor and outdoor (IP66);
4. Used in chemical industry, oil refining, petroleum exploitation, offshore oil platform,oil tanker, military and other dangerous places for lighting and emergency lighting during power failure.
Diagram of cold and hot air moving in and out
Distribution Curve
LCD-HLBD55-C Outline and Installation Dimension
LCD-HLBD55-D Outline and Installation Dimension
